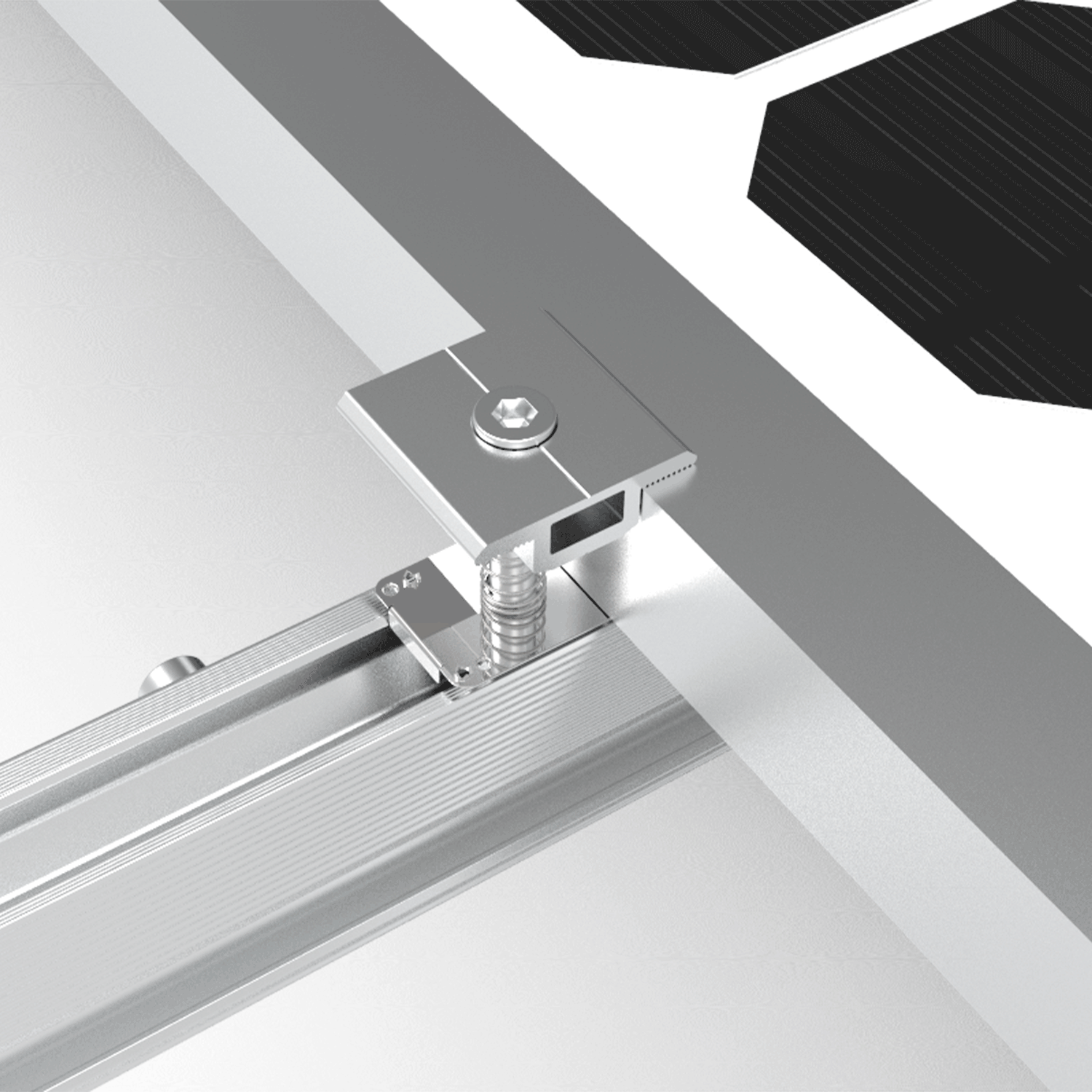

Mid Clamp

The mid clamp (also called center clamp or intermediate clamp) is a crucial component in a solar panel mounting system, specifically used in rail-based systems.

      Primary Function:

• To securely fasten the long sides (typically the mid-point) of two adjacent solar panels to a shared mounting rail running beneath them.

• It clamps onto the outer frame edges of both neighboring panels simultaneously, pinching them down onto the rail.

Key Features & Design:

• Shape: Usually has a symmetrical "M" or "H" profile when viewed from the end, forming two clamping points.

• Material: Almost exclusively made from anodized aluminum (often 6005-T5 or similar) for corrosion resistance, strength-to-weight ratio, and compatibility with aluminum rails/panel frames. Stainless steel bolts are standard.

• Compatibility:

• The thickness of the solar panel frames (commonly 30mm, 35mm, or 40mm).

• The profile/shape of the mounting rail (e.g., C-channel, U-channel, specific proprietary profiles).

• The bolt head/nut design used for tightening (hex, T-bolt, specialized heads).

•  Torque Requirements: Designed to be tightened to a specific torque value (provided by the mounting system manufacturer). Over-tightening can damage the panel frame; under-tightening risks panel uplift or movement.

• Movement Allowance: Often incorporates a design (e.g., elongated holes, sliding interfaces) to allow for thermal expansion and contraction of the panels and rails without inducing stress.

     Location & Usage:

• Placed between every two panels along a row, centered over the shared mounting rail.

• Used alongside end clamps (which secure the outer edges of the first and last panels in a row) and sometimes corner clamps (for specific layouts).

• Typically, one mid clamp is used per seam between two panels on a single rail. Some large panels or high-wind areas might use two clamps per seam on longer panel edges.

     Why Mid Clamps are Essential:

• Panel Security: They are the primary means of fixing the majority of the panel's length to the structure, preventing uplift from wind and lateral movement.

• Structural Integrity: They transfer loads (wind, snow, seismic) from the panels into the mounting rails and ultimately to the roof or ground structure.

• Alignment & Spacing: Ensure consistent spacing between panels and help maintain straight rows.

• Thermal Movement: Accommodate expansion/contraction without stressing the panels or rails.

• Ease of Installation: Designed for efficient installation, often allowing panels to be slid into place before final tightening.
