Rail

Solar mounting rails are the most rooftop and ground-mounted solar systems. They form the critical framework onto which solar panels are securely attached.

Primary Function:

• Structural Support: Provide the main longitudinal support for the solar panels.

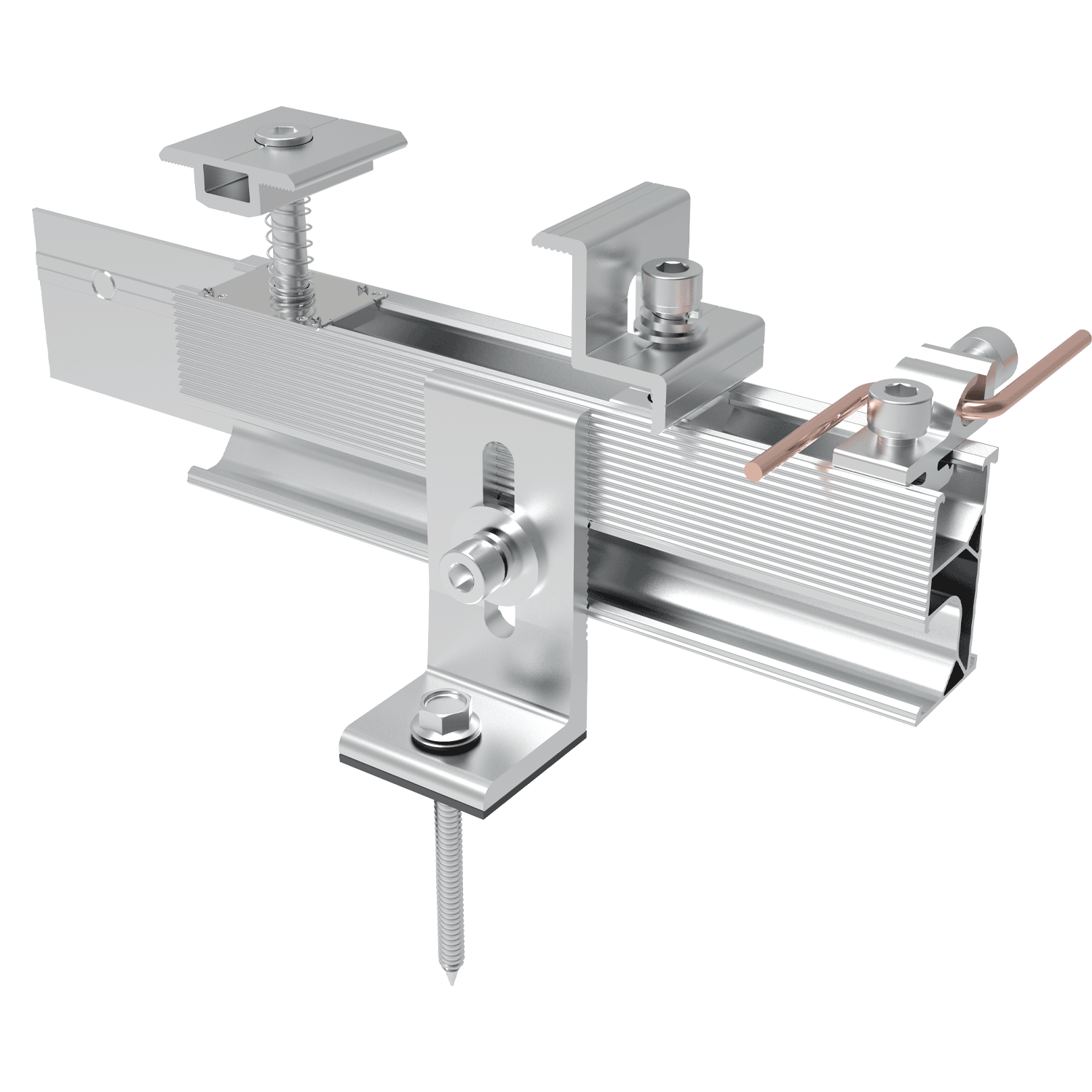

• Attachment Point: Feature integrated channels (T-slots, C-channels) where specialized clamps (mid-clamps, end-clamps) slide in to hold the panels firmly in place.

• System Integration: Connect to the underlying mounting structure (roof attachments like flashings/lags, ground posts, or trapezoidal sheets).

Key Features & Design:

• Material: Predominantly anodized aluminum (lightweight, strong, corrosion-resistant, easy to work with). Some heavy-duty systems use galvanized steel.

• Profile: Engineered cross-sections (often I-beam, C-channel, or custom profiles) optimized for strength-to-weight ratio and stiffness. Profiles include integrated T-slots.

• T-Slot / Channel: The defining feature. Allows clamps to be positioned anywhere along the rail's length and tightened securely.

• Lengths: Typically come in standard lengths (e.g., 12ft, 14ft, 16ft / 3.6m, 4.2m, 4.8m) and can often be easily spliced together using connectors for longer runs.

• Pre-Drilled Holes: Often include holes at ends or intervals for attaching to mounting feet or splice kits.

• Anodization/Coating: Critical for corrosion resistance, especially in coastal or harsh environments. Mill finish aluminum should be avoided.

Types & Compatibility:

• Standard Rails: Most common, used for attaching panels via clamps gripping the long edges.

• Top-of-Panel Rails: Sometimes used for specific mounting methods (less common than edge clamping).

• Compatibility: Clamps and mounting hardware (feet, brackets) are typically system-specific. You must use clamps and hardware designed for the specific rail profile from the same manufacturer/system supplier. Mixing brands usually doesn't work.

Installation Process:

• Mounting feet/attachments are secured to the roof/ground structure.

• Rails are laid perpendicular to the direction of the panels (usually parallel to the roof ridge/array edge).

• Rails are attached to the mounting feet using bolts/brackets.

• Rails are spliced together if needed.

• Panels are positioned on the rails.

• Mid-clamps and end-clamps are inserted into the rail channels and tightened onto the panel frames to secure them.

• Rails are bonded together for grounding.
