Solar Farm System

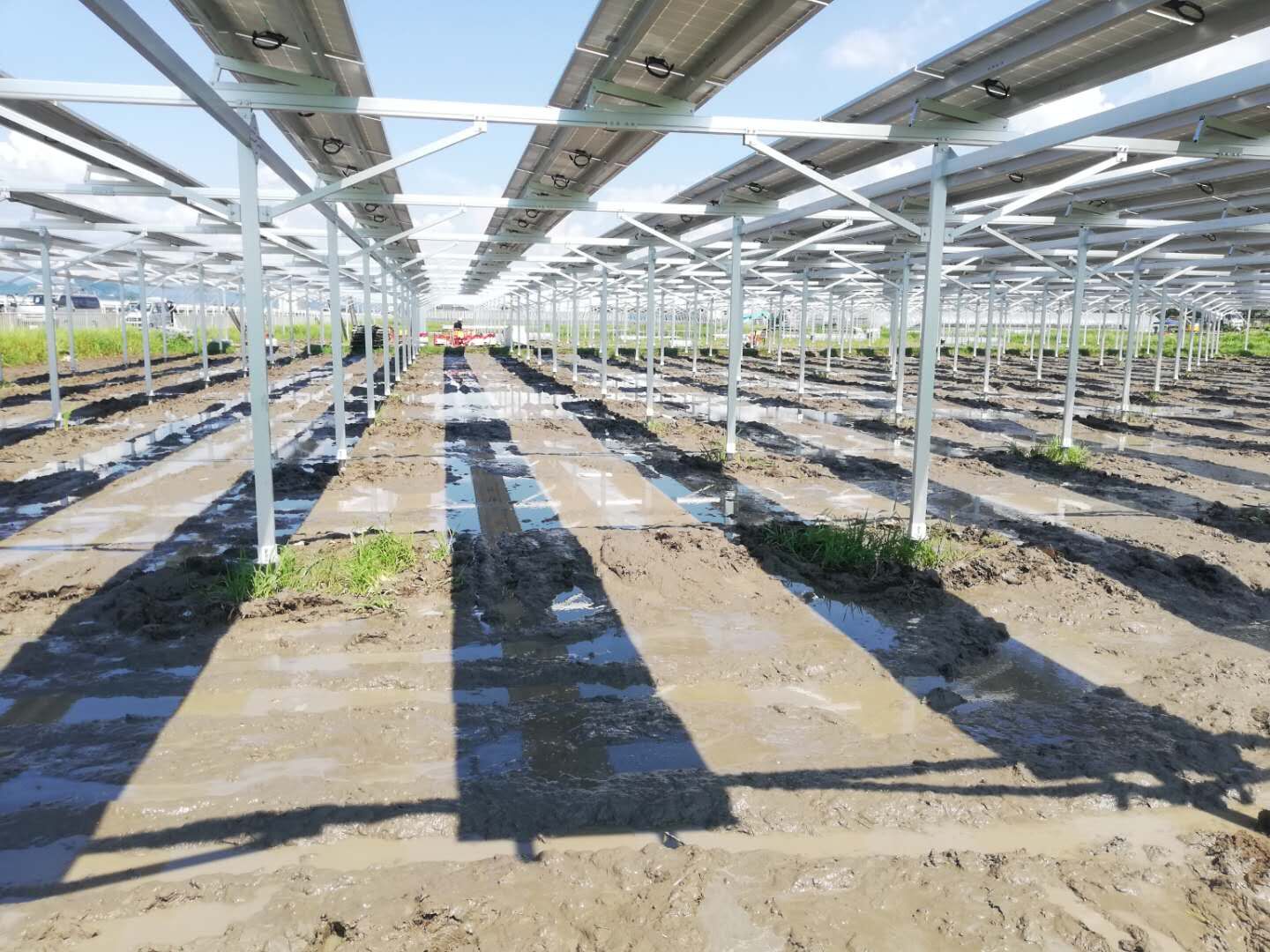

A solar farm mounting system (also called a solar racking system) is the structural framework that securely holds solar panels in place at the optimal angle and orientation to maximize sunlight exposure in large-scale ground-mounted solar power plants. It's a critical component impacting performance, longevity, and cost.

   Core Functions:

1. Support: Securely anchor panels to withstand wind, snow, seismic loads, and other environmental forces for 25+ years.

2. Positioning: Fix panels at a specific tilt angle (fixed-tilt) or enable movement to track the sun (tracking systems).

3. Optimization: Maximize energy yield per unit area.

4. Durability: Resist corrosion (galvanized steel, aluminum) in harsh outdoor environments.

5. Safety: Provide safe installation, operation, and maintenance access.

6. Ground Clearance: Elevate panels to protect from vegetation, flooding, and allow airflow/cooling.

Foundation Types (Critical for Stability):

• Ballasted: Use concrete blocks or slabs resting on the ground, held by gravity. Minimal ground penetration. Good for landfills, brownfields, or rocky soil. Requires large land area.

• Cast-in-Place (CIP): Concrete poured into excavated holes around rebar cages. Very strong, handles high loads, versatile.

• Precast: Concrete foundations made off-site and set into place. Faster than CIP but requires transport.

• Ground Screws (Helical Piles): Steel shafts with helical plates screwed into the soil. Fast installation, minimal excavation, removable, good for many soil types.

• Driven Piles: Steel beams driven vertically into the ground using impact hammers. Very strong, good for harder soils/rock.

• Concrete Foundations:

• Choice Depends On: Soil type/conditions, water table, frost depth, seismic zone, wind/snow loads, cost, installation speed, environmental restrictions.

Key Materials:

• Steel: Predominant material (galvanized - hot-dip galvanized to ASTM A123 or similar). High strength, cost-effective. Needs proper corrosion protection.

• Aluminum: Lighter weight, inherently corrosion-resistant. Often used for rails and clamps. More expensive than steel.

• Concrete: Primarily for ballast blocks or foundations.

Critical Design & Selection Considerations:

• Site Conditions: Wind speed (ASCE 7), snow load (ASCE 7), seismic zone, soil type/bearing capacity, topography, flood risk, corrosion potential (C1-C5), frost depth.

• Panel Specifications: Size, weight, frame type (clamping points), quantity.

• Energy Yield Goals: Fixed-tilt vs. tracker trade-off.

• Cost: Upfront CAPEX vs. lifetime energy yield (LCOE).

• Installation: Ease, speed, required equipment (e.g., pile drivers).

• Operations & Maintenance (O&M): Access for cleaning/repairs, tracker reliability.

• Codes & Standards: International Building Code (IBC), local codes, UL 2703 (mounting system safety), IEC TS 62941.

• Corrosion Protection: Critical for longevity. Specify coating types/thickness (e.g., HDG zinc thickness) based on site corrosivity.

• Row Spacing: Avoids shading between rows, impacts land use.
